UNITREE · Quadruped robots
Unitree B2-Ex
Explosion-proof quadruped robot — intelligent security sentinel
Continuous OTA software upgrades and updates. Robots take on the risk; people stay safe.
Key parameters
Highlighted payload, mobility, and protection values for high-risk environments.
Load capacity
High payload capacity.

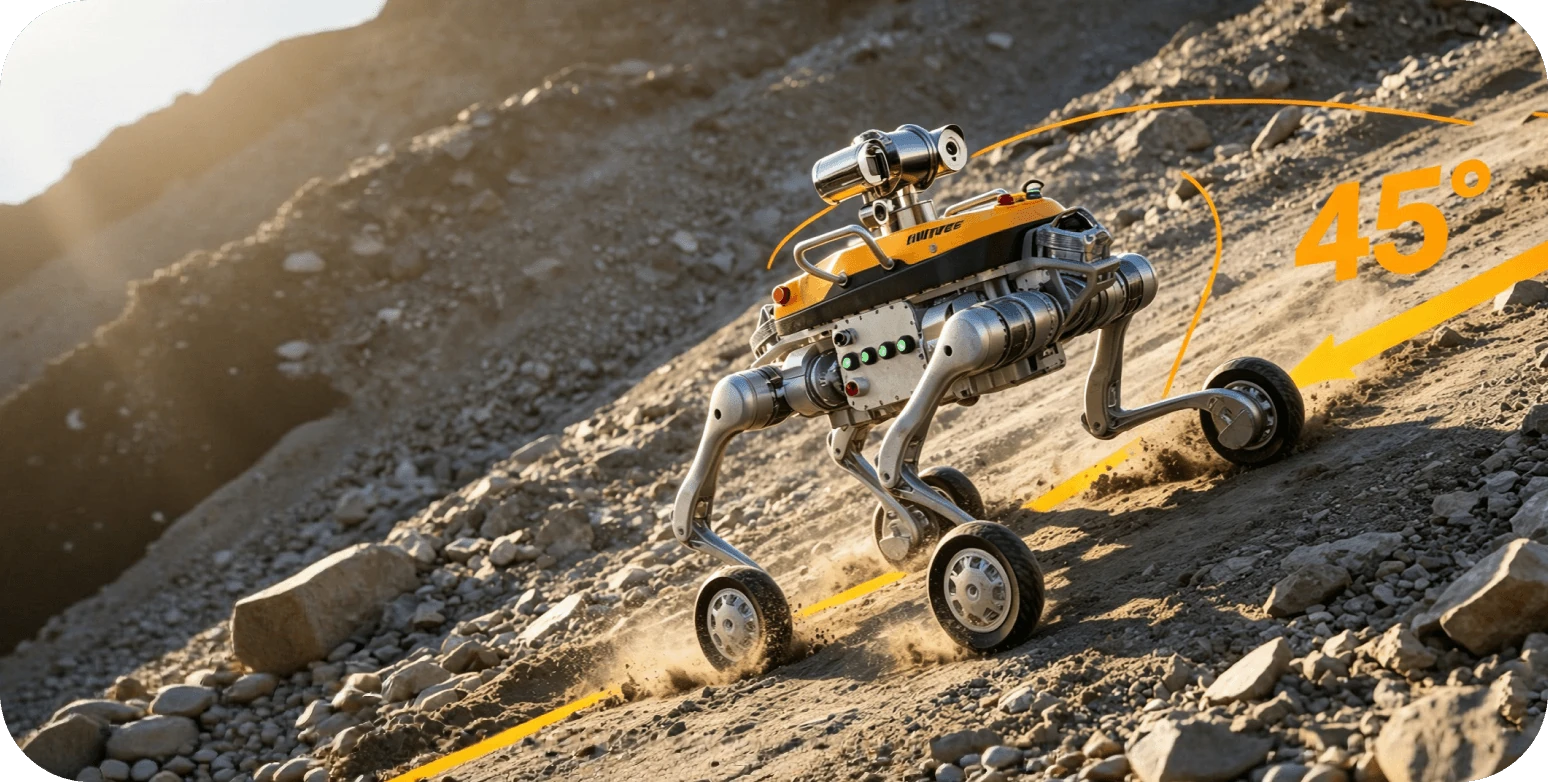

Mobility
Slope climbing and step negotiation.
Protection
Ingress protection rating.
The 25 cm step value is presented as a marketing parameter on this summary card; the detailed table lists a range of 20–25 cm.

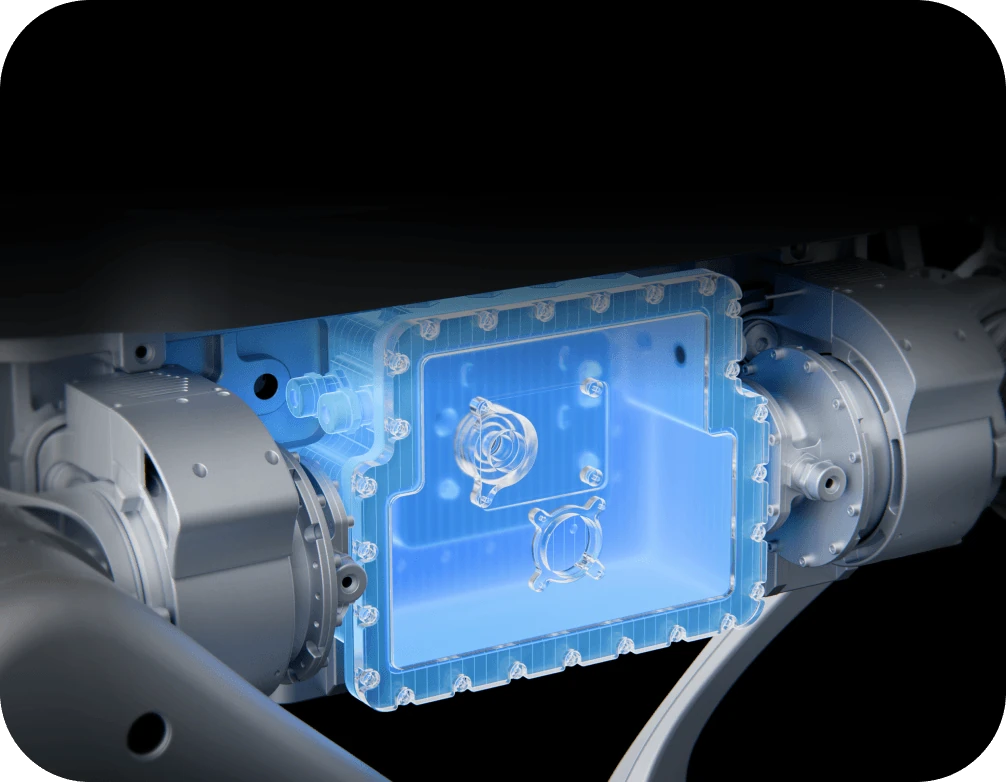

Safety first
In line with the safety principle, independent certification requirements apply to key components, including the power supply system and motors. Source control and rigorous processes aim to establish a safety defense line in high-risk scenarios.
Integration for industrial applications
Pan-tilt-zoom (PTZ) units, visible-light cameras, infrared thermal cameras, gas cloud imaging and acoustic imaging systems can be integrated, along with various field payloads such as communication modules, gas sensors, LiDAR and robotic arms. Multi-payload integration supports multidimensional perception and comprehensive monitoring of critical parameters with a single robot.
Reach deeper into industrial sites and extend inspection boundaries
Designed for high-risk industrial environments such as natural gas gathering stations, oil and gas production facilities, chemical tank farms and hazardous material warehouses. Its route-based patrol, equipment condition data collection and anomaly identification support help reduce how often personnel need to enter hazardous areas. Functions and configurations can be adapted to site explosion protection zones, road conditions and inspection requirements.
Key technical specifications
Two configurations: B2-Ex chassis and B2-Ex inspection solution.
| Explosion protection classification | Ex db mb IIB T4 Gb / Ex db eb ib mb IIB T4 Gb |
|---|---|
| Dimensions (standing, L×W×H) | 1085×685×710 / 1320×685×965 mm |
| Weight (including battery) | ≈130 / ≈170 kg |
| Degrees of freedom (joint motors) | 12 / 12 |
| Charging method | Manual / wireless; manual / wireless |
Electrical and motion parameters
Retain the operating conditions and differences between the two configurations as specified by the manufacturer.
| Battery capacity | 60 Ah (3072 Wh) / 60 Ah (3072 Wh) |
|---|---|
| Power source | Lithium battery / lithium battery |
| Operating time | ≥7 hours / ≥4 hours (40 kg payload, average external payload power ~80 W, stable conditions) |
| Load capacity | Continuous walking payload 40 kg; maximum 70 kg / standard superstructure |
| Slope walking capability | 45° / 30° |
| Step climbing | 20–25 cm / 20–25 cm |
| Speed | 0–1 m/s / 0–1 m/s |
| Operating temperature | −20–55 °C / −20–55 °C |
The inspection solution's operating time is based on stable conditions with a 40 kg payload and approximately 80 W average external payload power.
Superstructure
Standard superstructure equipment for the chassis and inspection solution.
| LiDAR | — / Front and rear explosion-proof LiDAR |
|---|---|
| Dual-spectrum PTZ | — / Standard |
| Gas detection sensor | — / Standard |
| Autonomous navigation | — / Supported |
| External interfaces | Ethernet / Ethernet |
— indicates that no hardware is specified, as the Turkish equivalent of the “/” symbol in the manufacturer's table.
Accessories
Standard accessories for both configurations.
| Charger | Standard / standard |
|---|---|
| Remote control | Standard / standard |
Operational safety warning
The manufacturer describes this product as a civil robot and requires that it not be modified in a hazardous manner or used dangerously. Applicable conditions and local regulations must be followed.
Next steps for Unitree B2-Ex.
Let's evaluate your model selection and application needs together.
