UNITREE · Dexterous robot hands
Unitree Dex1-1
Unitree Dex1-1 — Professional and refined
Designed specifically for embedded AI applications. Wide stroke, strong force, and precise control.

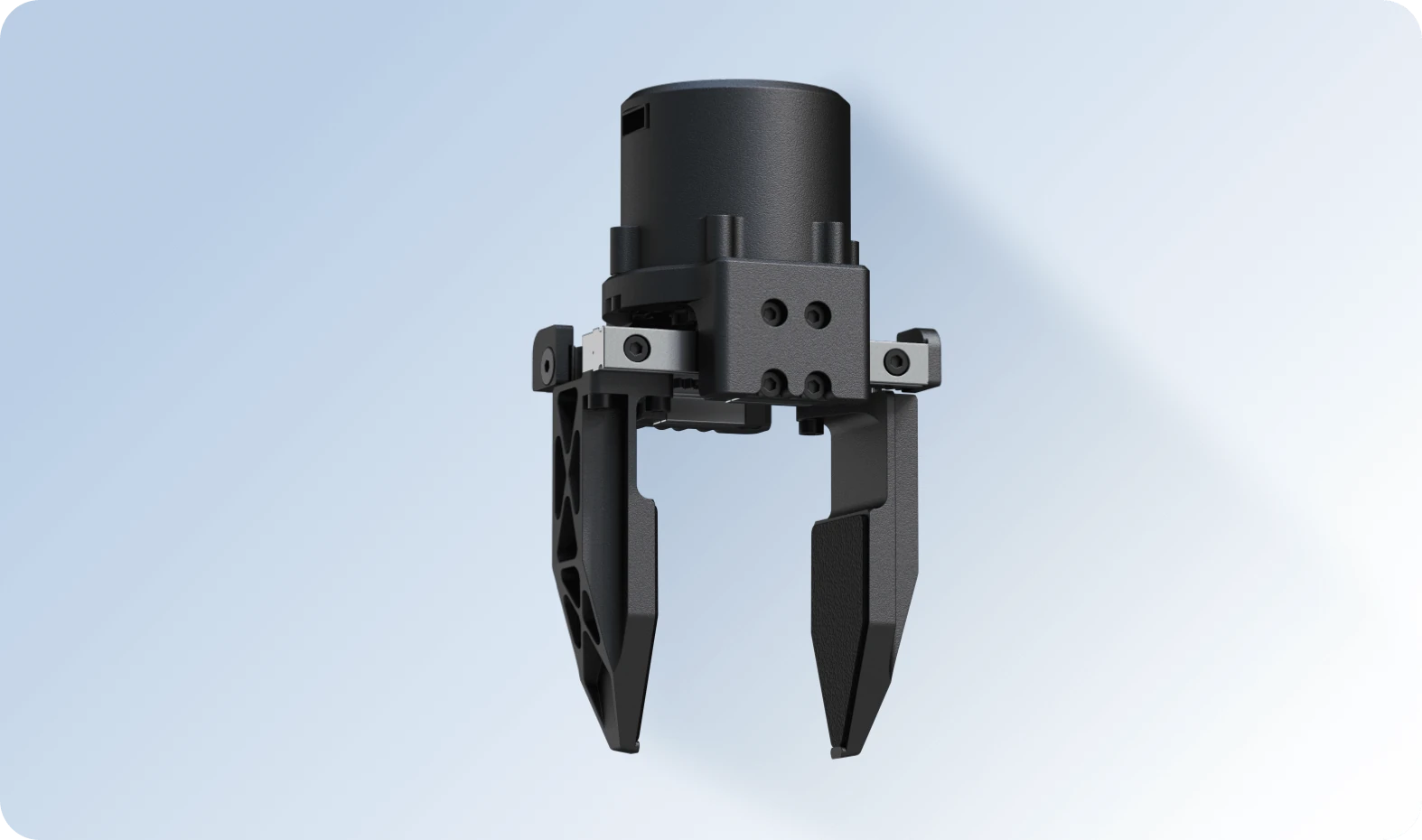

Key features
Unitree Dex1-1 offers a wide jaw opening, application-adjustable gripping force, and fast control. The manufacturer presents these features visually and in a general feature description; no separate subheading or verifiable numerical values are provided in the text.
Industry applications
Unitree Dex1-1 is a robotic system shown by the manufacturer in a range of use contexts, from research and education to industrial automation.
Parcel sorting
Sorting shipments.
Industrial automation
Automation processes.
New retail
Next-generation retail applications.
Consumer electronics
Consumer electronics sector.
Medicine
Applications in medicine.
Product compatibility
Unitree Dex1-1 is a versatile platform offered in standard or advanced camera-equipped versions. The advanced camera variant enhances visual capabilities, while the standard version meets basic usage needs. The platform selection interface specified by the manufacturer is presented as a visual gallery/tab flow; this gallery shows switching between the Unitree G1, H2, and R1 humanoid robots. According to the wording on the page, product compatibility with these platforms is stated in the manufacturer’s sources.

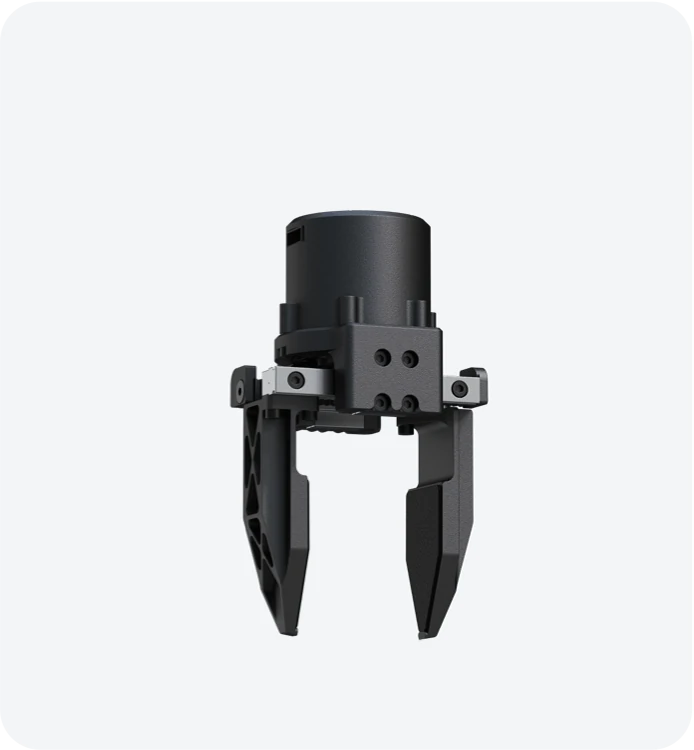

Standard version.
Camera version: 1080P, 30/60 FPS; field of view: horizontal 118°, vertical 87°, diagonal 140°.
1080P; 30/60 FPS; H:118° V:87° D:140°

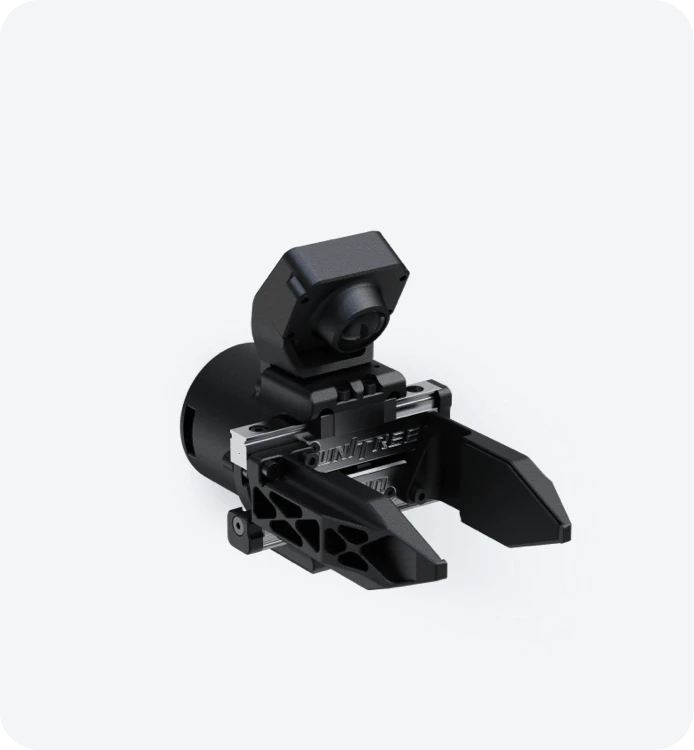

Dex1-1 Gripper — Advanced Version (Camera-Equipped)
Camera version: 1080P, 30/60 FPS; field of view: horizontal 118°, vertical 87°, diagonal 140°.
Standalone-use option in the manufacturer's compatibility gallery.
Platform compatibility stated by the manufacturer.
Platform compatibility stated by the manufacturer.
Platform compatibility stated by the manufacturer.
Unitree Dex1-1 camera specifications apply only to the camera-equipped advanced version described on the page.
Product parameters
The manufacturer provides technical information in two groups: gripper parameters and motor parameters. Values may vary depending on application conditions and model configuration; the technical table below preserves the manufacturer's description.
| Model | Dex1-1 |
|---|---|

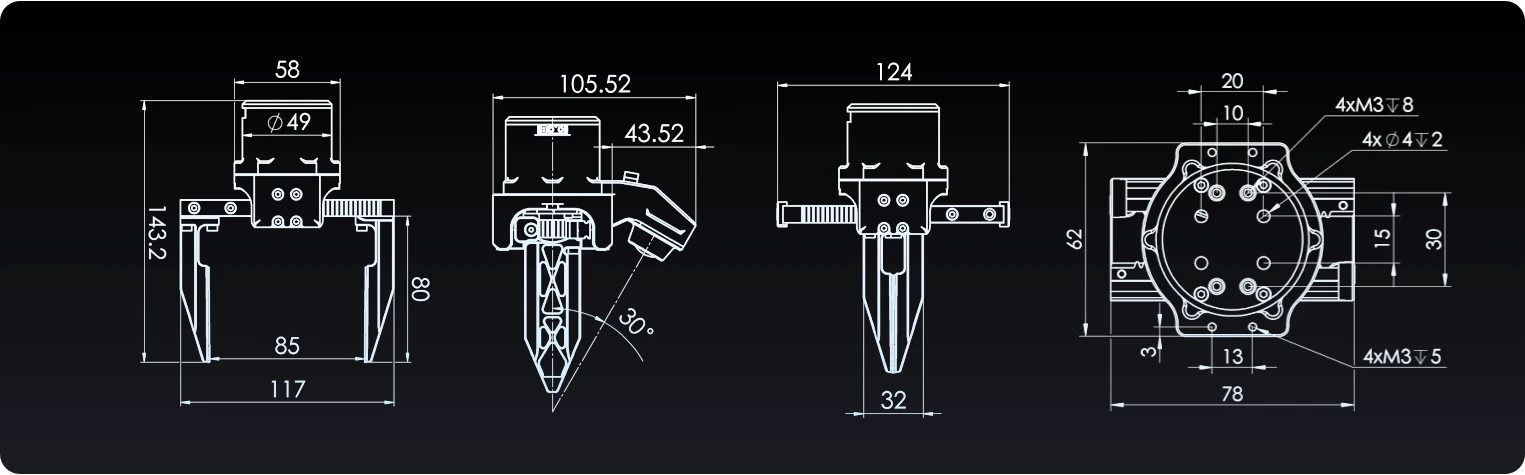

| Dimensions | 143 × 78 × 67 mm [1]The 78 mm width applies when partially open; when fully open, it is 120 mm, and when fully closed with the side slides extended, it is 124,5 mm. |
| Weight | 550 g |
| Stroke | 90 mm |
| Gripping force (adjustable) | 5–120 N [2]Measurement depends on motor stiffness, damping, and torque settings in the 24–60 V range; it may vary by application. |
| Speed (adjustable) | 50–375 mm/s [2]Value may vary depending on the application and settings. |
| Fingertip position resolution | 0,1 mm |
| Gripping load (form-fitting) | 20 kg [3]Maximum load that can be carried horizontally without losing grip; may vary by application. |
| Gripping load (friction-based) | 5 kg [4]Maximum vertical load that can be carried without slipping, measured using a square steel block; may vary by application. |
| Shortest closing time over the full stroke | 0,24 s [2]May vary depending on measurement conditions and motor settings. |
| Jaw length | 80 mm |
| Communication protocol | High-speed 485 |
| Communication baud rate | 6 Mbps |
| Communication control frequency | 1000 Hz |
| Operating voltage | 24–64 V (24/48 V DC recommended) |
| Static current | 0,03 A |
| Peak line current | 3,5 A |
| Motor peak torque | 5 N·m |
| Motor maximum speed | 27 rad/s (with a 64 V power supply) |
| Recommended operating environment | −20 °C – 60 °C |
| Motor reduction ratio | 1:25 |
| Motor encoder resolution | 15 bit |
| Motor encoder type | Absolute encoder |
| Motor status feedback | Angle, angular velocity, torque, temperature |
| Motor control commands | Angle, angular velocity, torque, stiffness, damping |
[1] Width is 78 mm when half-open; 120 mm when fully open; and 124,5 mm when fully closed with the side slides extended. [2] Speed, gripping force, and full-stroke closing time were measured with motor stiffness, damping, and torque settings across the 24–60 V range; results may vary depending on the application. [3] Form-fitting grip load is the maximum load that can be carried horizontally without losing grip and may vary depending on the application. [4] Friction grip load is the maximum vertical load that can be carried without slipping, measured with a square steel block, and may vary depending on the application. [5] Parameters may vary depending on the application and configuration. [6] Product appearance may vary; refer to the final product. The manufacturer also states that the product is for civilian use, advises avoiding hazardous modifications/methods, and requires compliance with local regulations.
