HUMANOID ROBOTS · UBTECH

UBTECH Panda Robot

Panda-themed humanoid demonstration and interaction robot, equipped with a mobile sensor suite.

UBTECH Panda Robot is a panda-themed humanoid robot that shares the Walker X body. It is designed for interactive trade show and promotional displays, multimedia presentations, and human-robot communication.

Height: 130 cm · 63 kg
Degrees of freedom: 41 · Servo joints
Arm payload: 1,5 kg · In extended position

Request a quote / demo

1 / 3

SELECT BY TASK

UBTECH Panda Robot
what is it evaluated for?

UBTECH Panda Robot is a panda-themed humanoid robot solution that uses the same body as the Walker X platform. Developed for mobile interaction, exhibition tasks, and public promotions, the robot combines vision, hearing, touch, and environmental perception through comprehensive sensing and display components to enable proactive interaction. Its multi-sensor array and integrated multimedia displays make it suitable for greeting visitors, presenting demonstrations, and interactive promotions.

Trade show and promotional demonstrationsVisitor greeting and guidanceInteractive exhibitions and presentations

PRODUCT-SPECIFIC

Key features.

Features compiled from source product information; evaluate according to the model and configuration.

Advanced force-torque sensing

Six-dimensional force and torque sensors located in the robot’s wrists and ankles distinguish grasping forces from ground reaction forces, enabling more precise interaction and balance control.

Multichannel sensing

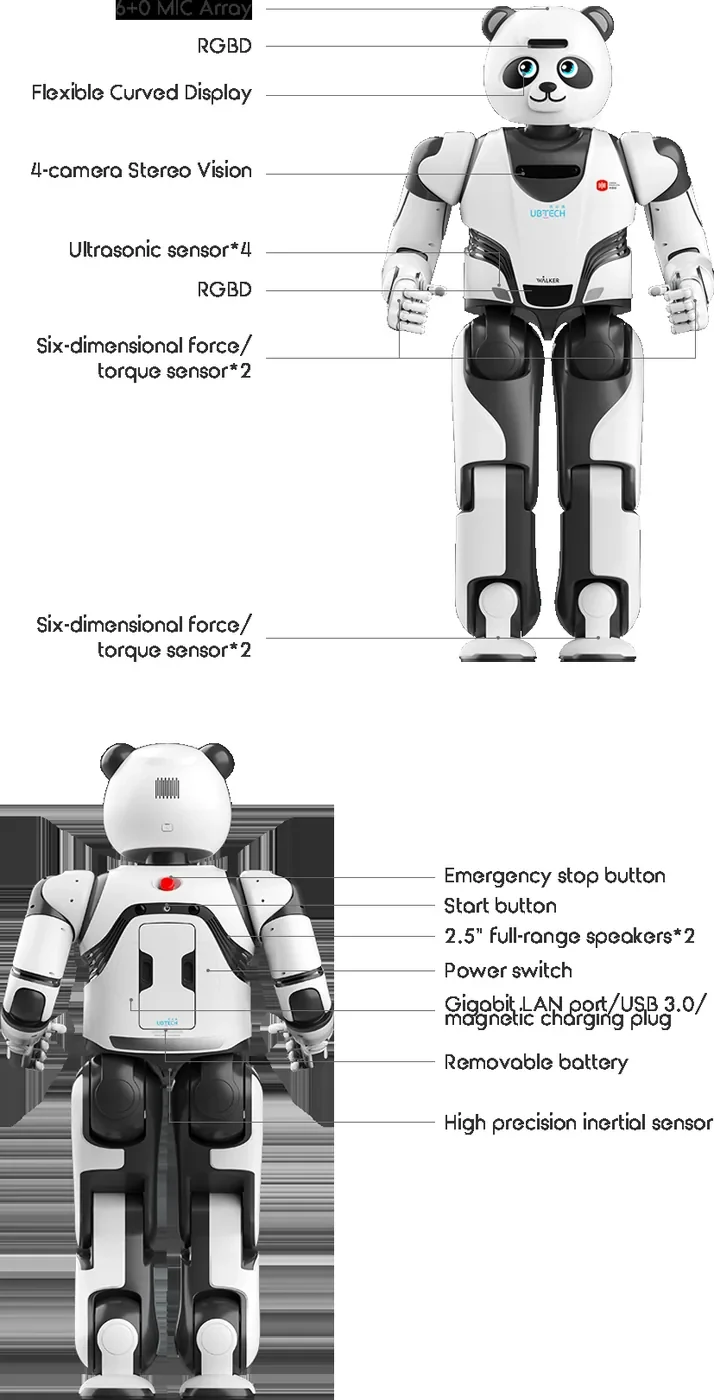

RGBD and stereo cameras, ultrasonic sensors, a high-precision inertial sensor, and a microphone array work together to support environmental and human perception.

Bionic eyes and emotional expressions

The dual flexible curved screens on the front panel and the four-dimensional display system enhance communication and performance presentations with more than 28 built-in emotional expressions.

Mobile navigation and precise positioning

U-SLAM-based navigation and fine positioning capabilities help the robot precisely maintain its desired position in exhibition and promotional environments.

Interaction-focused manipulation

With a 600 mm reach for single-arm manipulation and a stated payload capacity in the extended position, Panda Robot is suited to trade show appearances and lightweight interactive tasks.

Design-focused use case

With its panda-themed aesthetics and multimedia capabilities, the robot is positioned as an eye-catching interactive tool for shows, welcoming visitors, and brand events.

Integrated audio system

Two full-range speakers and a multichannel microphone array provide a suitable setup for voice interaction and multimedia presentations.

SOURCED PRODUCT DATA

Technical features.

Values are taken from the source product page. Confirm the package, software, and accessory contents against the manufacturer's current documentation before ordering.

UBTECH Panda Robot technical data
Feature	Value
Dimensions (standing)	130 cm tall
Weight	63 kg
Arm reach	Single-arm reach 600 mm
Arm payload	1,5
Maximum speed	3 km/s
Climbing angle	20°
Obstacle and step	15 cm
Joint torque	4,5-200 Nm
Motor speed	30-90 rpm
Positioning accuracy	Positioning accuracy 10 cm; precision positioning accuracy 1 cm
Navigation	U-SLAM visual navigation and autonomous path planning
Battery	54,6V 10Ah lithium, 3,6 kg; removable, charging time 2 hours
Operating time	2 hours under combined operating conditions; charging time 2 hours
Charging time	2 hours
Modes of movement	Bipedal humanoid; maximum 20-degree incline, 15 cm step and 3 cm uneven terrain compatibility
Degrees of freedom	41 DoF
Arm degrees of freedom	7 DoF
Leg degrees of freedom	6 DoF
Neck degrees of freedom	3 DoF
Manufacturer's note	Single-arm reach 600 mm. Maximum uneven terrain compatibility 3 cm. Payload rating applies with the arm fully extended.
Joint configuration	41 degrees of freedom.
Structure and materials	130 cm tall, 63 kg weight; modular design and easily removable battery. Single-arm reach 600 mm
Joint module	Six-dimensional force and torque sensors in the wrists and ankles; carries 1,5 kg with one arm extended
Interfaces	Gigabit RJ45 Ethernet interface, EtherCAT high-speed real-time bus, USB 3.0 port
Wireless	Wi-Fi 802.11 a/b/g/n, 5 GHz / 2,4 GHz dual-band
Display	Dual flexible curved displays (bionic eye design)
Processor	More than 28 robot emotion display types and proactive interaction can be defined.
Operating system	Ubuntu + Linux RT Preempt + Android; software framework ROSA; simulation platform Webots
Software features	Six-microphone array, RGBD camera, four-camera stereo vision, ultrasonic sensors x4, six-dimensional force and torque sensors in the wrists and ankles x2 + x2, high-precision inertial sensor, 2,5-inch full-range speakers x2; with U-SLAM, 10 cm positioning, 20 cm navigation and 1 cm precision positioning accuracy

PRODUCT INFORMATION SOURCES

Sources and documentation.

This catalog is intended to help explore product information. No commitments are made on behalf of Robotik Çözümler regarding stock, authorized dealers, pricing, warranty, or after-sales service terms.

FREQUENTLY ASKED QUESTIONS

Frequently asked questions.

How much payload can Panda Robot carry?

According to the manufacturer, it can carry 1,5 kg with one arm extended and has a single-arm reach of 600 mm; this capacity is designed to suit the robot’s exhibition representation and interaction purposes.
